KOLBUS DA 370

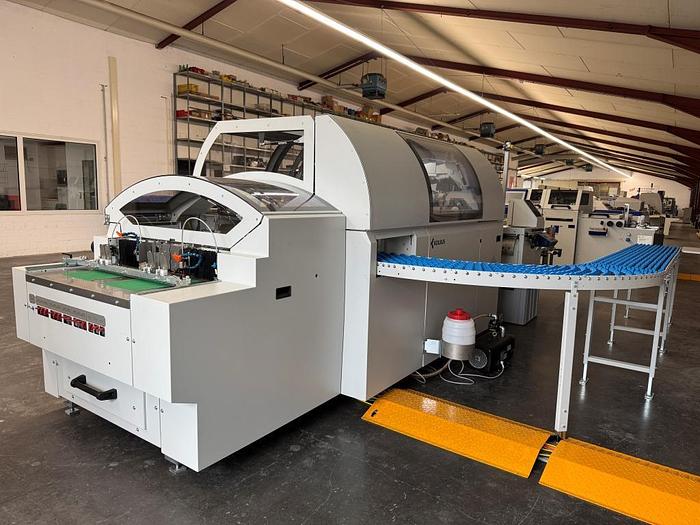

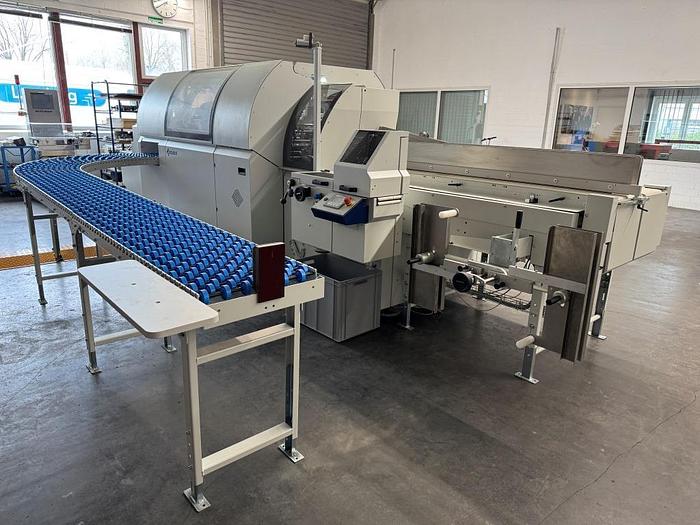

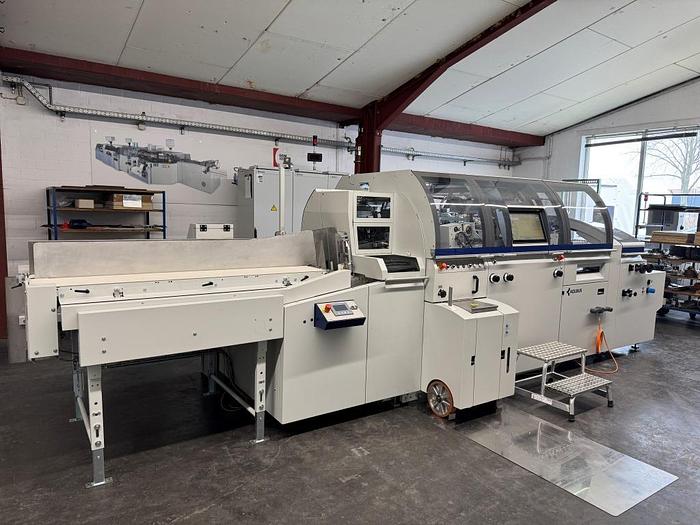

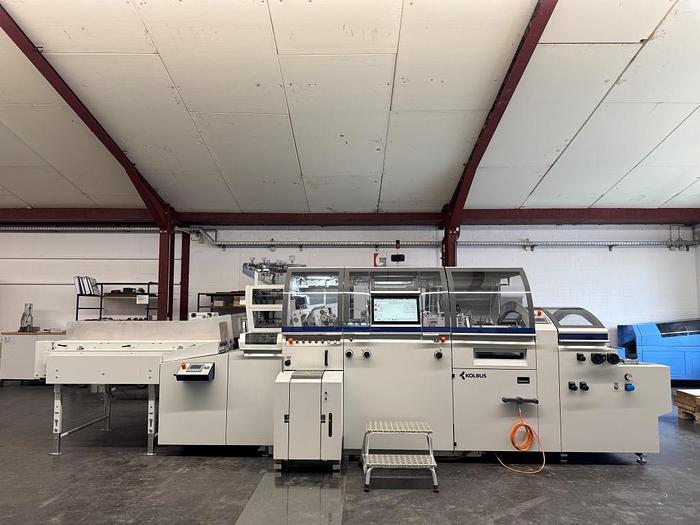

KOLBUS Casemaker DA 370

year 2023

New generation of casemaker for faster production and shorter make-ready times.

Automatic production of book cases, files, display cards, calendar backs or game bobards, at rates of up to 65 cycles/min.

Maximum production and process reliability in the manufacture of book cases. The DA 370 casemaker is a versatile machine for a wide range of applications. The machine with its non-stop case feeder is engineered to be ergonomic and extremely operator-friendly so that it can be easily operated by one person.

Configuration:

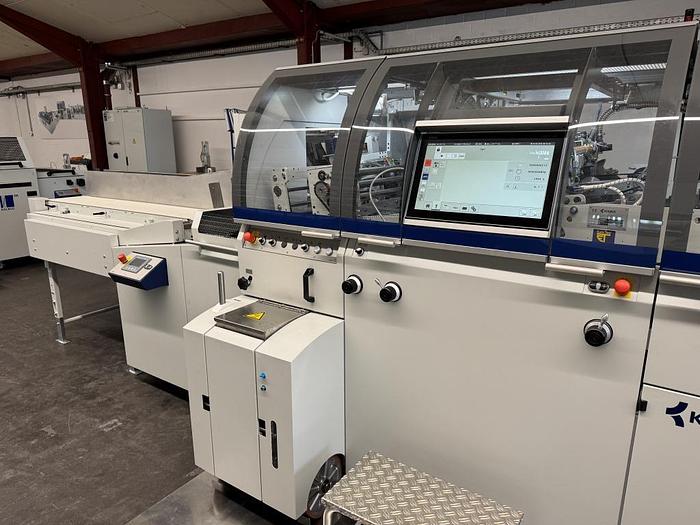

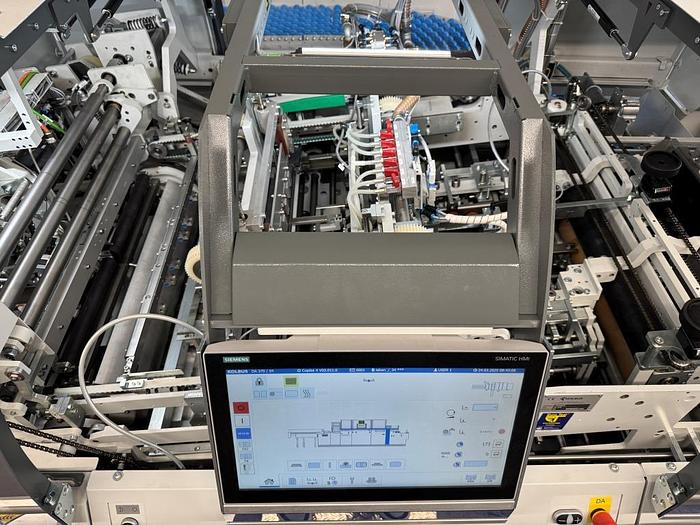

• Copilot system with touchscreen
• sectional touch panel for direct operation
• large display for showing the speed and malfunction messages
• board prestacking conveyor to automatically reload the magazines (stream cover and stack feeder)

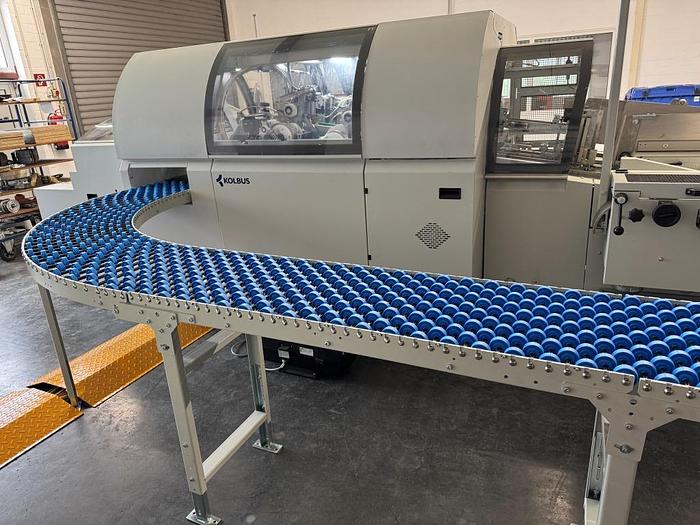

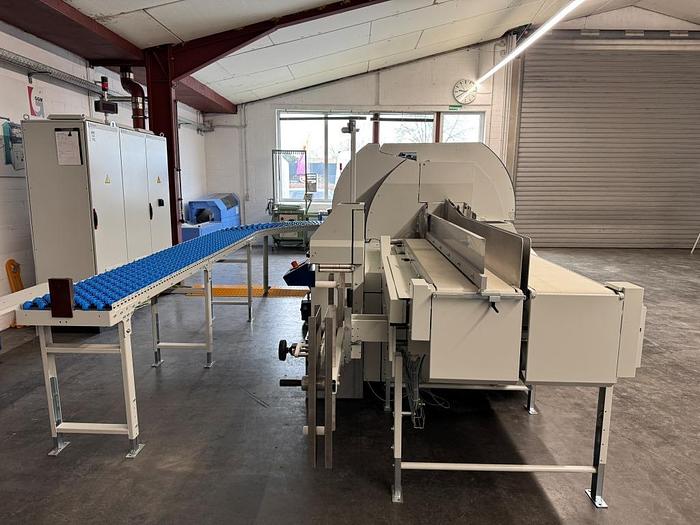

• counter-stacker delivery with roller conveyor delivery incl. table

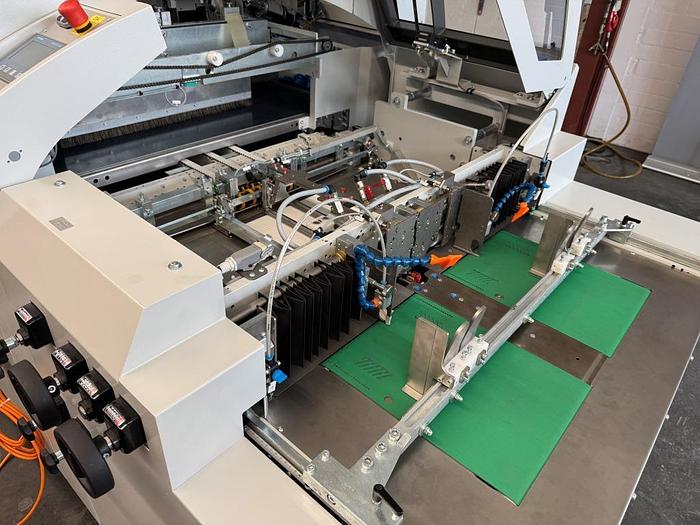

• cloth feeder for non-stop operation with stack magazine
• missing product check during separation of cloth and cardboard

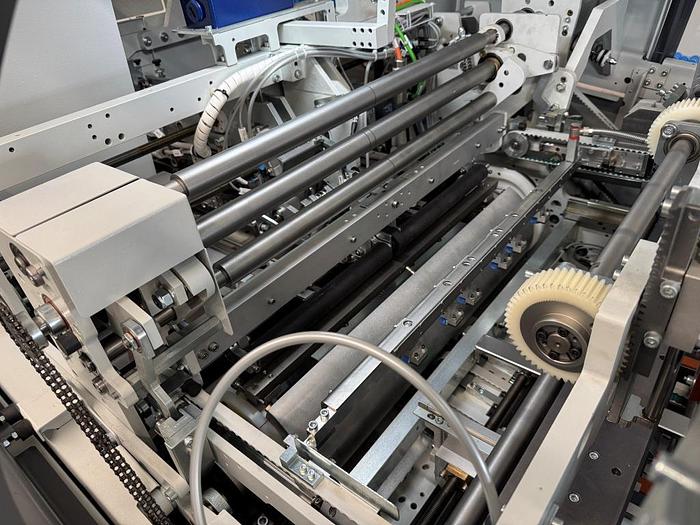

• cloth cylinder with grippers and interchangeable plates for rubber pads (5 plates 500 mm wide and 5 plates 720 mm wide, incl. 10 rubber pads)
• cardboard centre strip magazine
• device used to prepare centre strip roll
• centre strip waste chopper
• centre strip rub-down unit (head and foot)
• rub-down unit used to bond the covering material to cardboards and spine strip without creases
• extendable gluing station for processing hot glue with glue preparation in the premelter, heated glue roller and scraper roller
• viscosity control unit for an automatic supply of water via a water container with a pump
• device for padded cases
• function used to request individual cases for monitoring purposes on the operating side
• servo-controlled drive technology based on Siemens technology

Special equipment:

• device for producing quarter-bound cases in two operating steps
• preparation for cold glue processing during gluing of lining
• device for small format
• device fo large format
• Remote Service Gateway

Technical specifications:

mechanical speed: up to 65 cycles/min

open cover size max.: 205 x 670 mm

joint width: 4 - 15 mm

spine width: 14 - 120 mm

turn in width open: up to 19 mm

cloth width: 223 - 708 mm

cloth height: 158 - 428 mm

board thickness: 1 - 4 mm

board width: 95 - 328 mm

board height: 140 - 390 mm

board centre strip thickness: 1 - 4 mm

board centre strip width: 6 - 90 mm

centre strip roll thickness: 0,3 - 0,6 mm

centre strip roll width: 6 - 90 mm

lining width: 195 - 670 mm

lining height: 130 - 390 mm
