KOLBUS KM 200

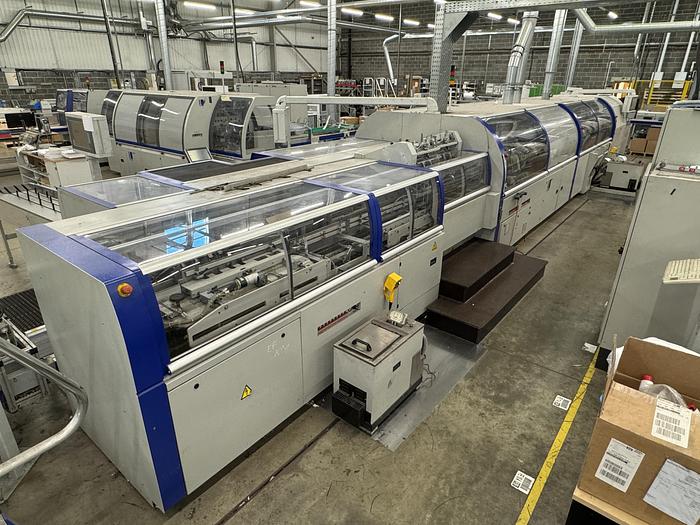

KOLBUS Perfect Binding Line KM 200

year 2013

This perfect binder is for the production of brochures and book blocks. Dynamic adjustment axes for continuous fully automatic setting to the varying product thickness, without make-readies. The perfect binder is able to process folded sections or single sheets.

Overview:

KM 200 perfect binder

transport and drying line

HD-HD 143 high capacity three knife trimmer (year 2017)

KL 501.D compensating stacker (year 2017)

AFS 702.W service portal

Configuration:

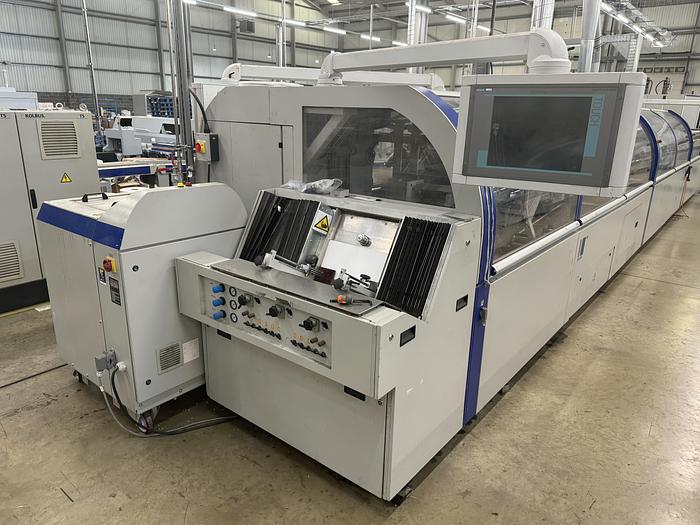

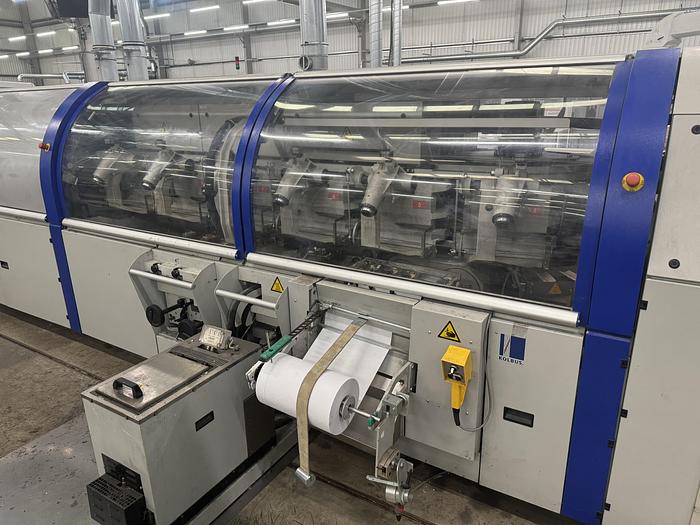

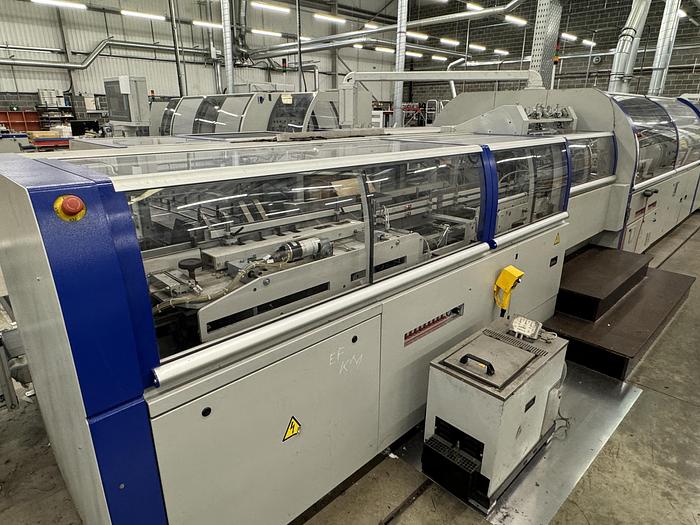

KM 200 perfect binder

• copilot system with touchscreen
• infeed with handfeeding, feed conveyor and star feeder
• endsheet feeder with 2 feeding stations, hotmelt gluing and premelter
• transfer to the binder
• 26 clamps
• milling station
• 1st spine preparing unit
• 2nd spine preparing unit
• brushing station (without dust exhaust system)
• changeable hotmelt spine gluing unit
• premelter LH 375.B
• changeable hotmelt side gluing unit
• premelter
• lining station
• IR heating at curve
• rotary cover feeder
• scoring station for 4 scores
• vacuum pumps
• pressing station
• lay down device to the left

Technical specifications:

mechanical speed: up to 3.500 cycles/h (feed via star feeder)

size range book block max.: 310 x 380 x 60 mm

size range book block min.: 140 x 150 x 1,5 mm

transport and drying line

• length approx. 35 - 40 m
• with emergency delivery

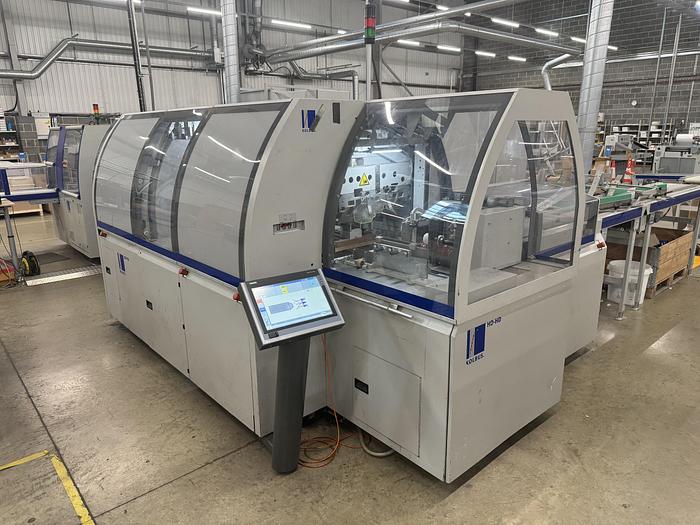

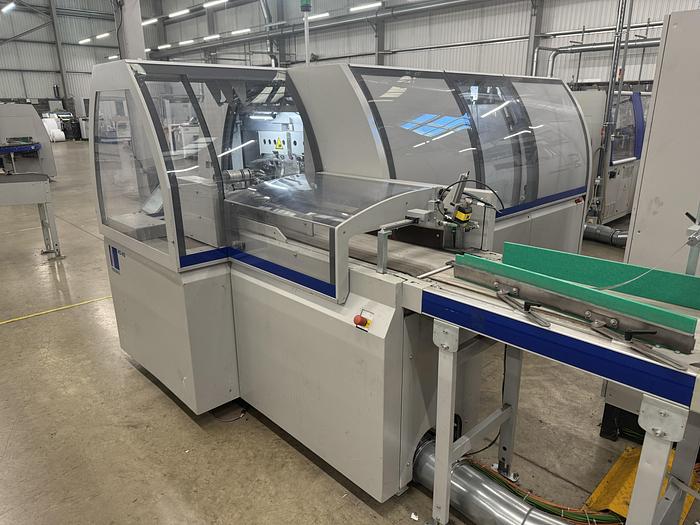

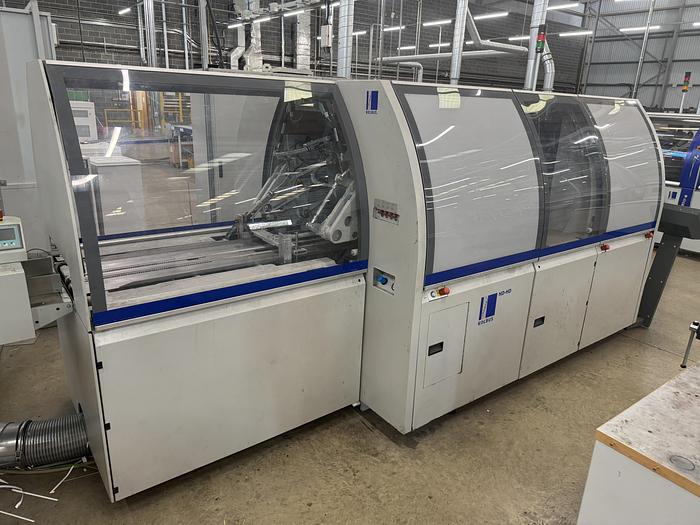

HD-HD 143 high capacity three knife trimmer

copilot system with touchsceen

• copilot system with touchscreen
• right hand infeed with counter stacker
• 1. cutting cabin
• 2. cutting cabin
• 2 set of knives
• knife setting gauge
• automatic data coupling with KL 501.D

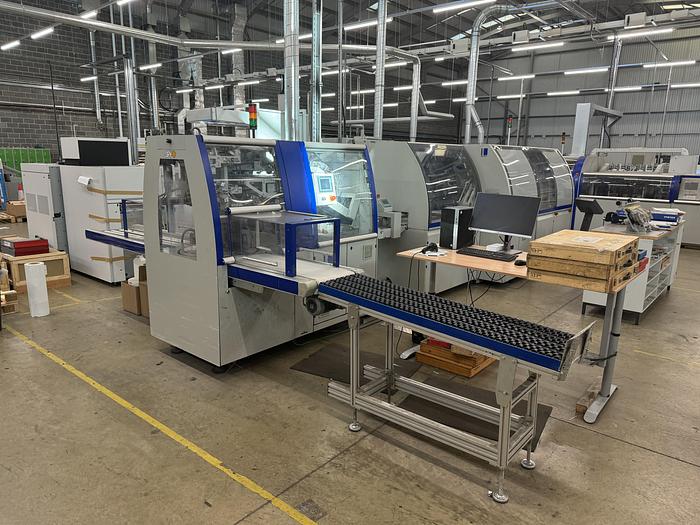

KL 501.D compensating stacker

• copilot system with touchscreen
• automatic data transfer from HD-HD 143
• delivery to left and right

AFS 702.W service portal
