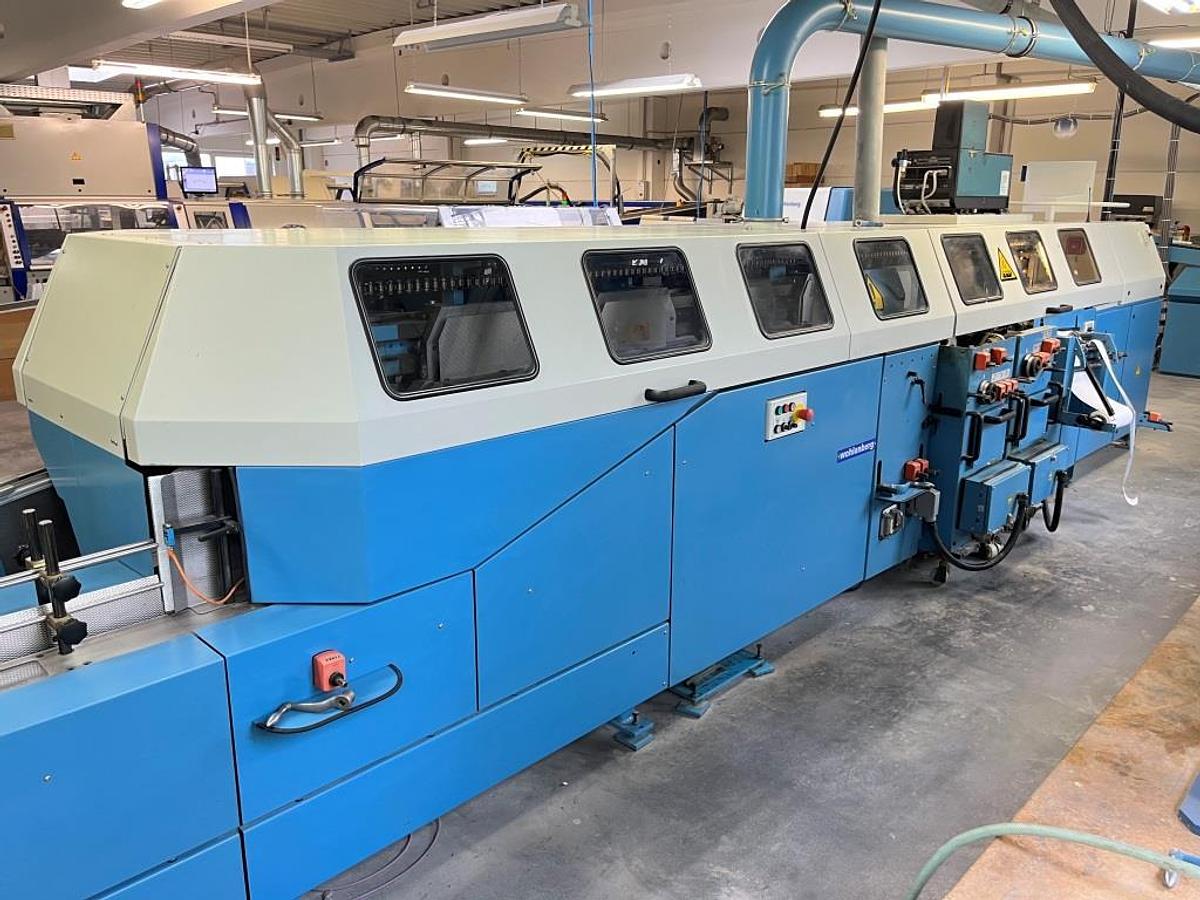

WOHLENBERG MASTER 6501

WOHLENBERG Perfect Binding Line MASTER 6501

year 1995

Overview:

SPRINTER 7010 gathering machine

MASTER 6501 perfect binder

transport and drying line

TRIM-TEC 56i three knife trimmer

Configuration:

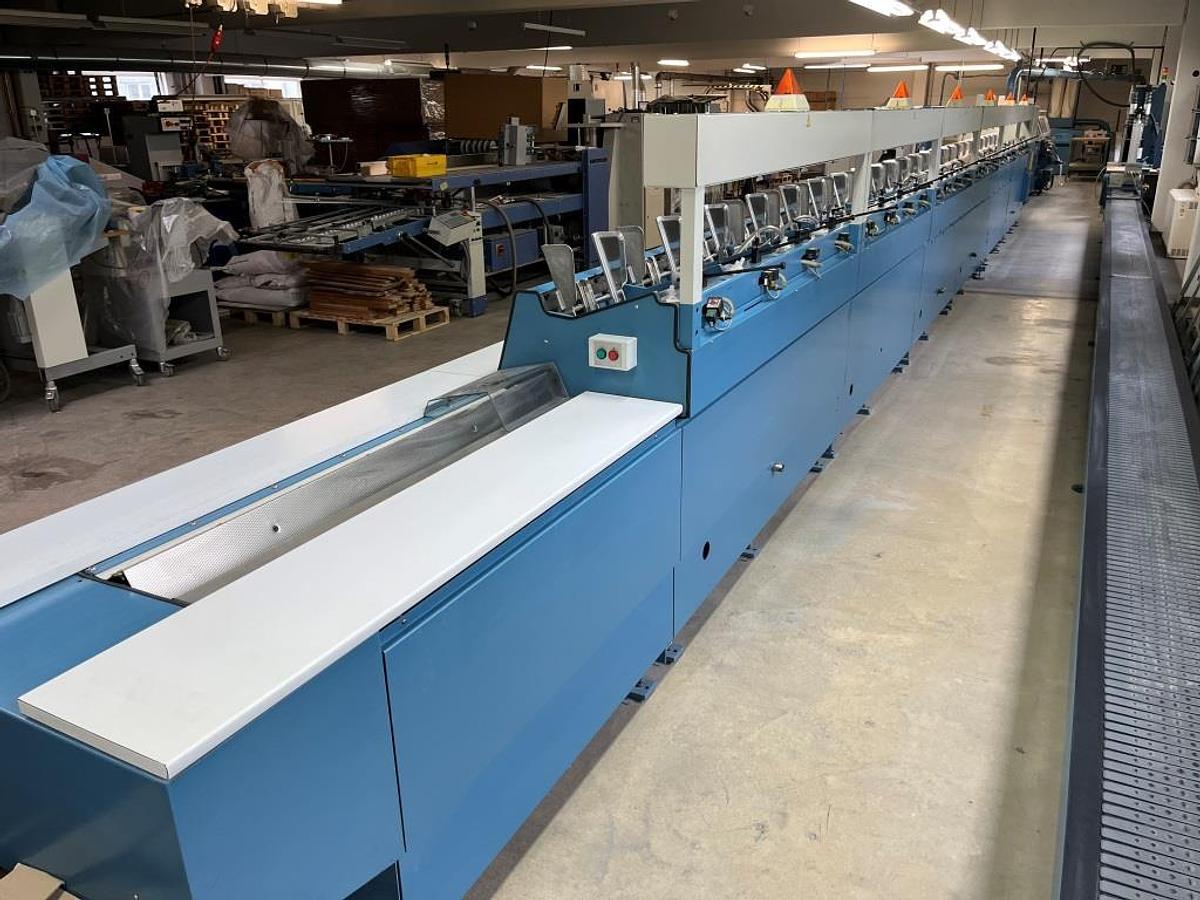

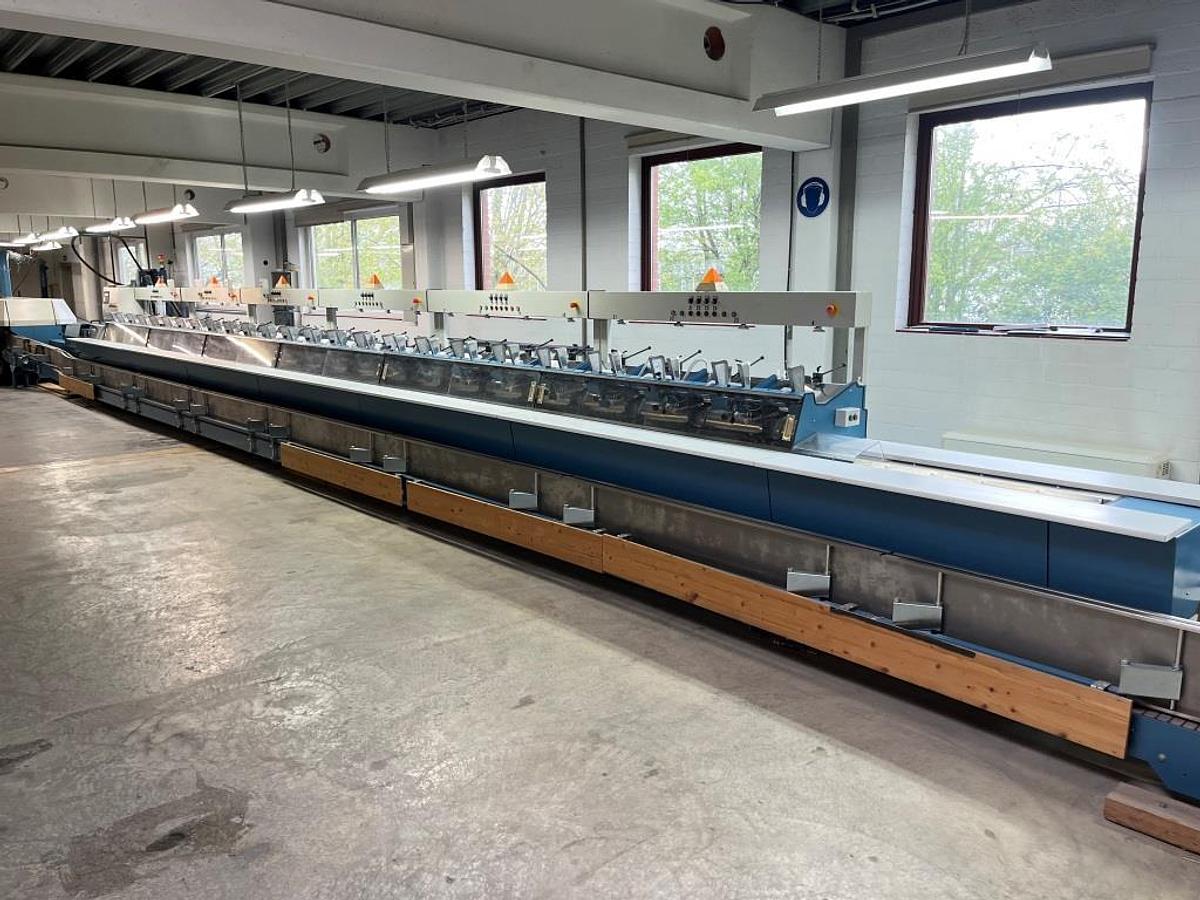

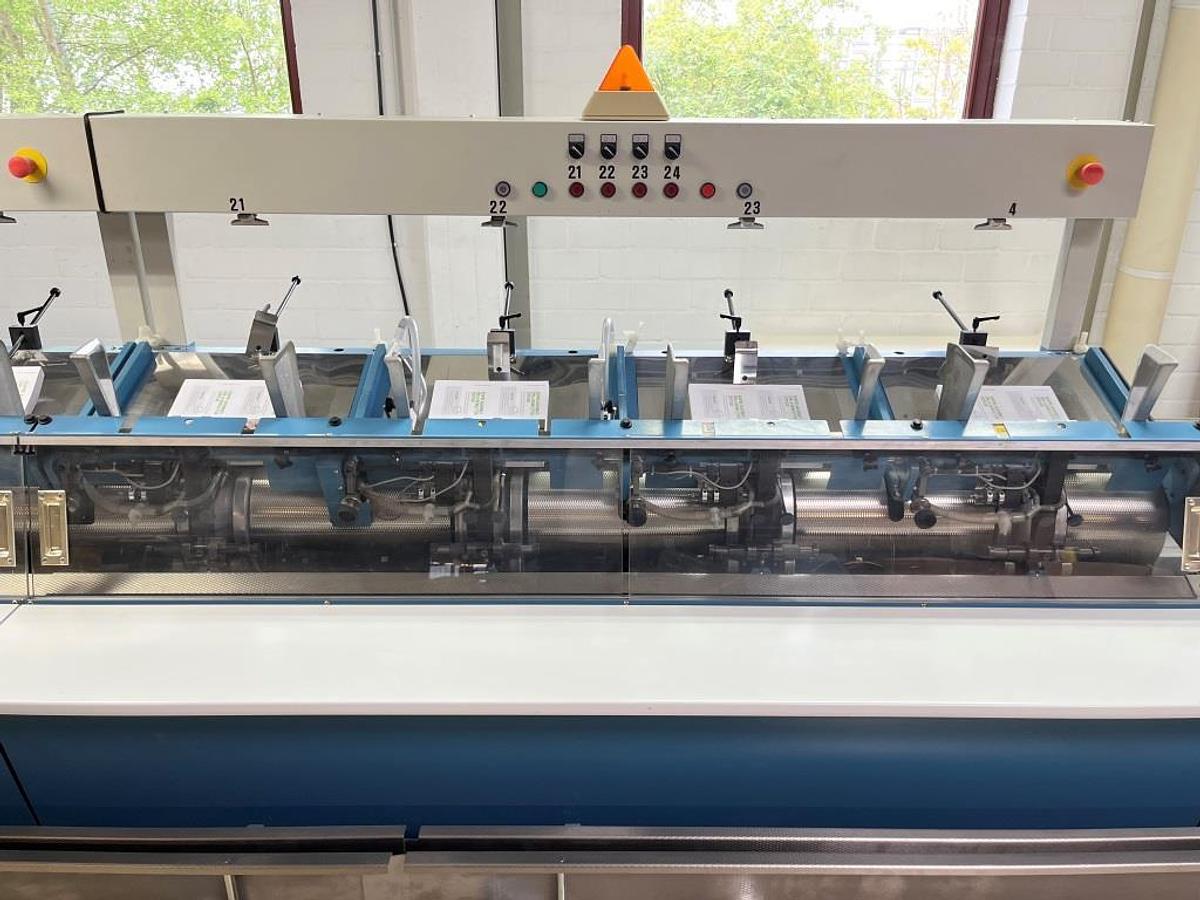

SPRINTER 7010 gathering machine

• handfeeding station
• 24 stations (12 stations, year 1999) and with 4 x WST opticontrol units for 4 stations
• set-up element
• transfer to the binder

(prepared for connection to a central air system)

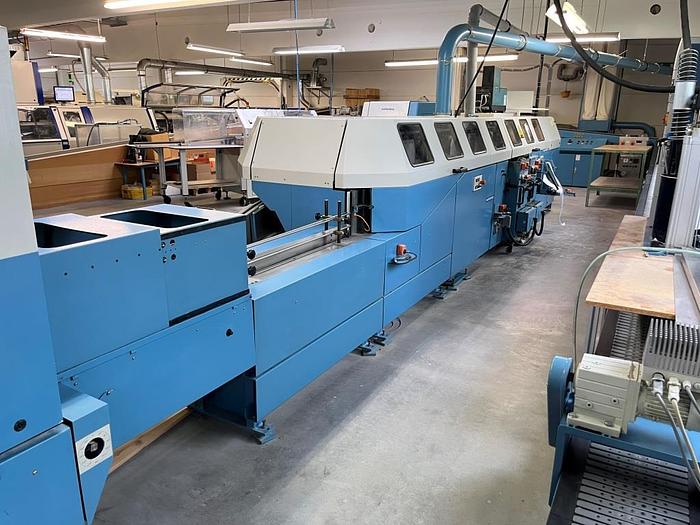

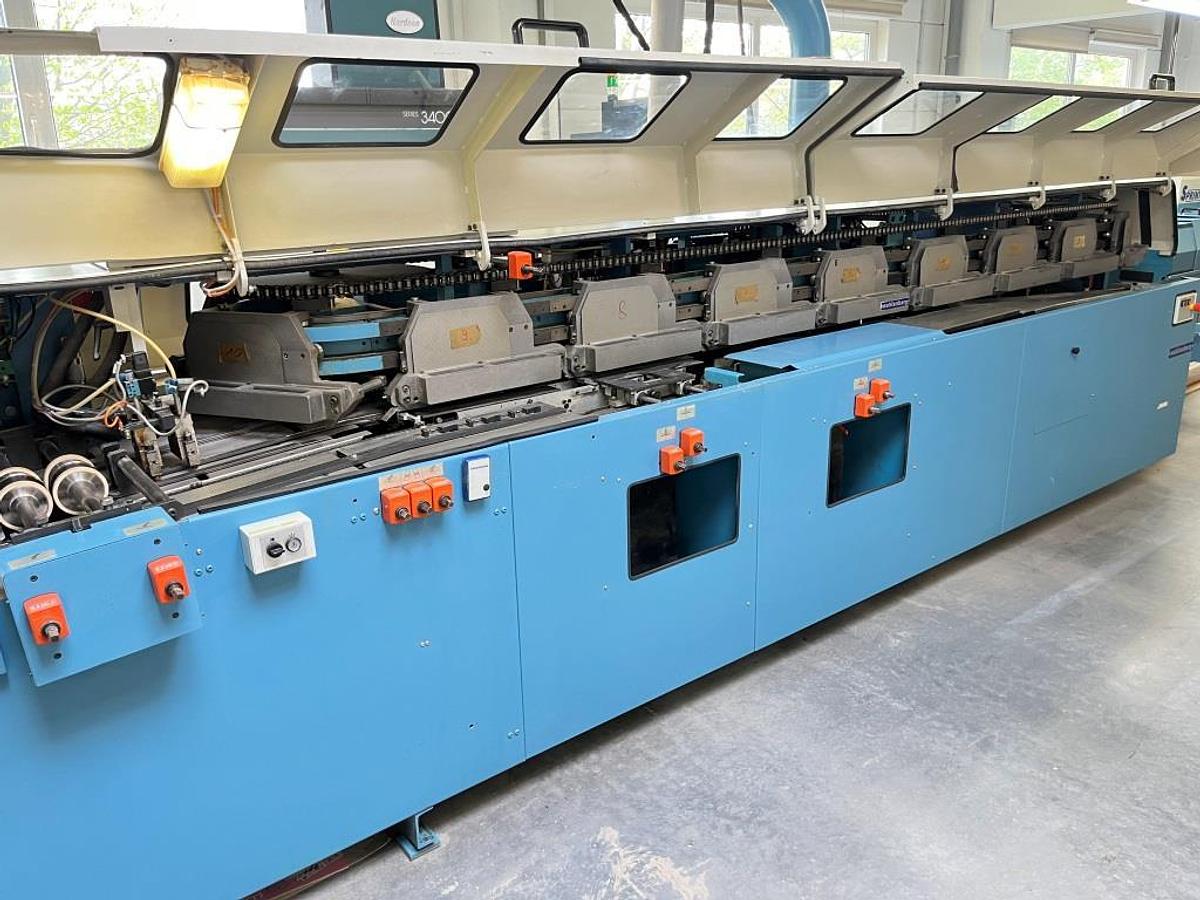

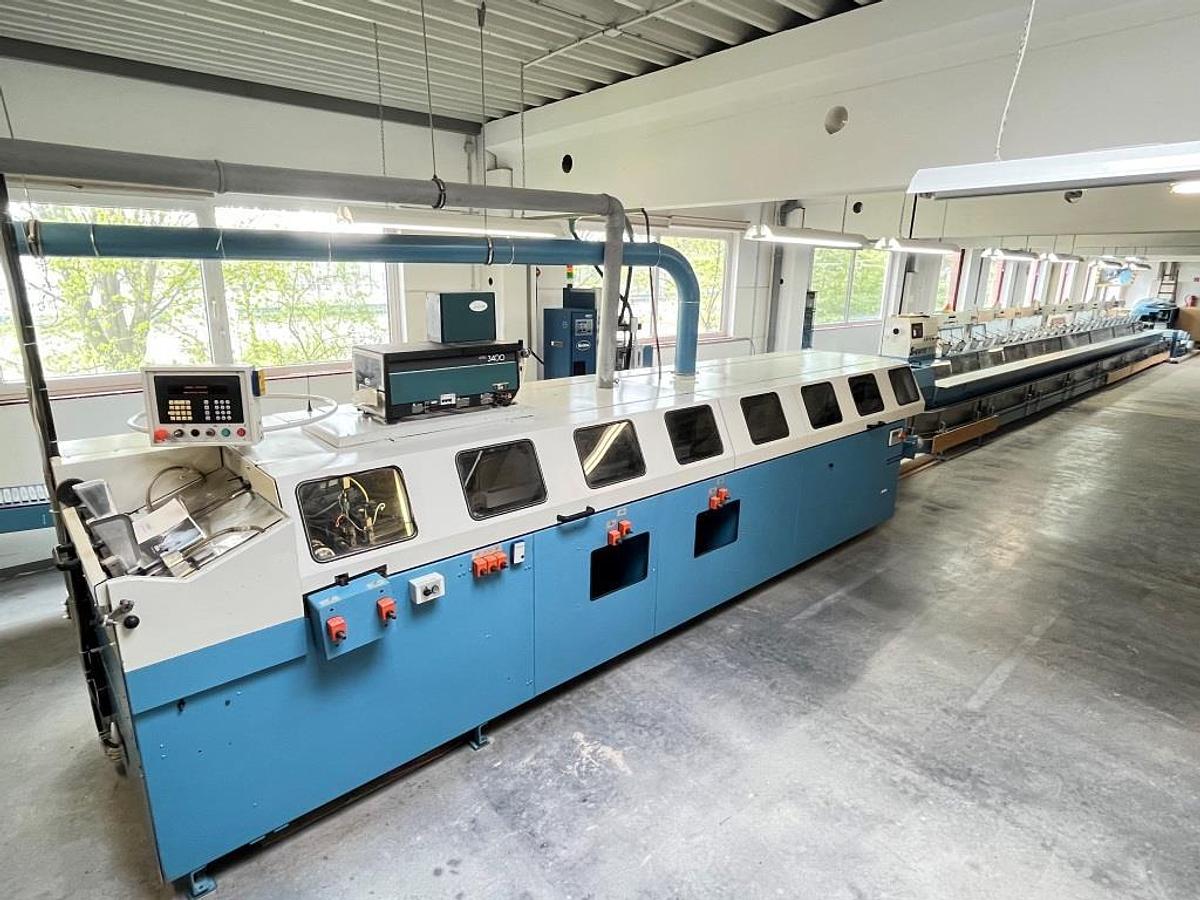

MASTER 6501 perfect binder

• 18 clamps
• infeed
• milling and roughening station
• dust exhauster
• Hotmelt spine gluing unit with integrated premelter
• Hotmelt side gluing unit with integrated premelter
• gauzing station
• rotary cover feeder with Nordson nozzle gluing
• 2 pressing stations

Technical specifications:

mechanical speed: up to 6.500 cycles/h

size range max.: 430 x 320 x 62 mm

size range min.: 140 x 105 x 2 mm

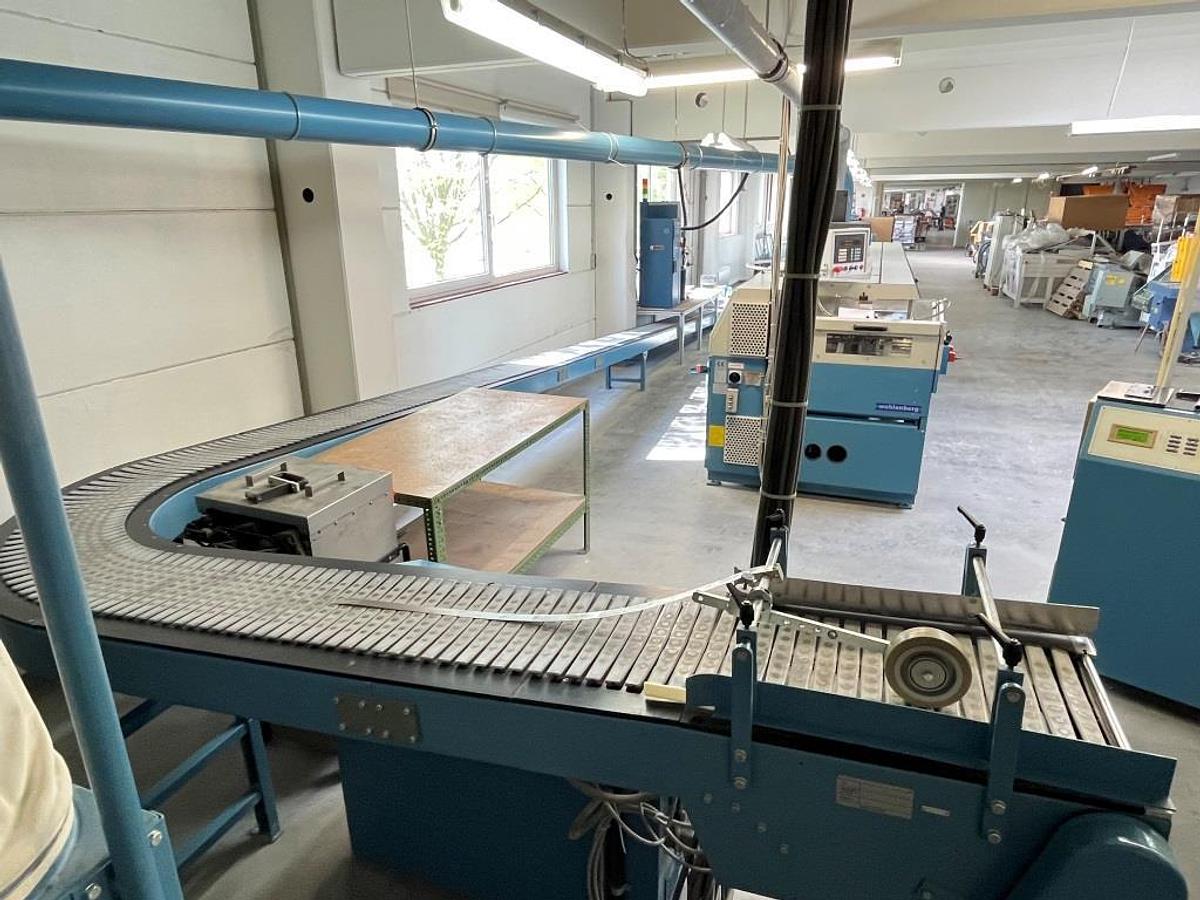

transport and drying line

• electrical cabinet
• lay down device
• with emergency delivery via reversing belt
• approx. 30 meters length

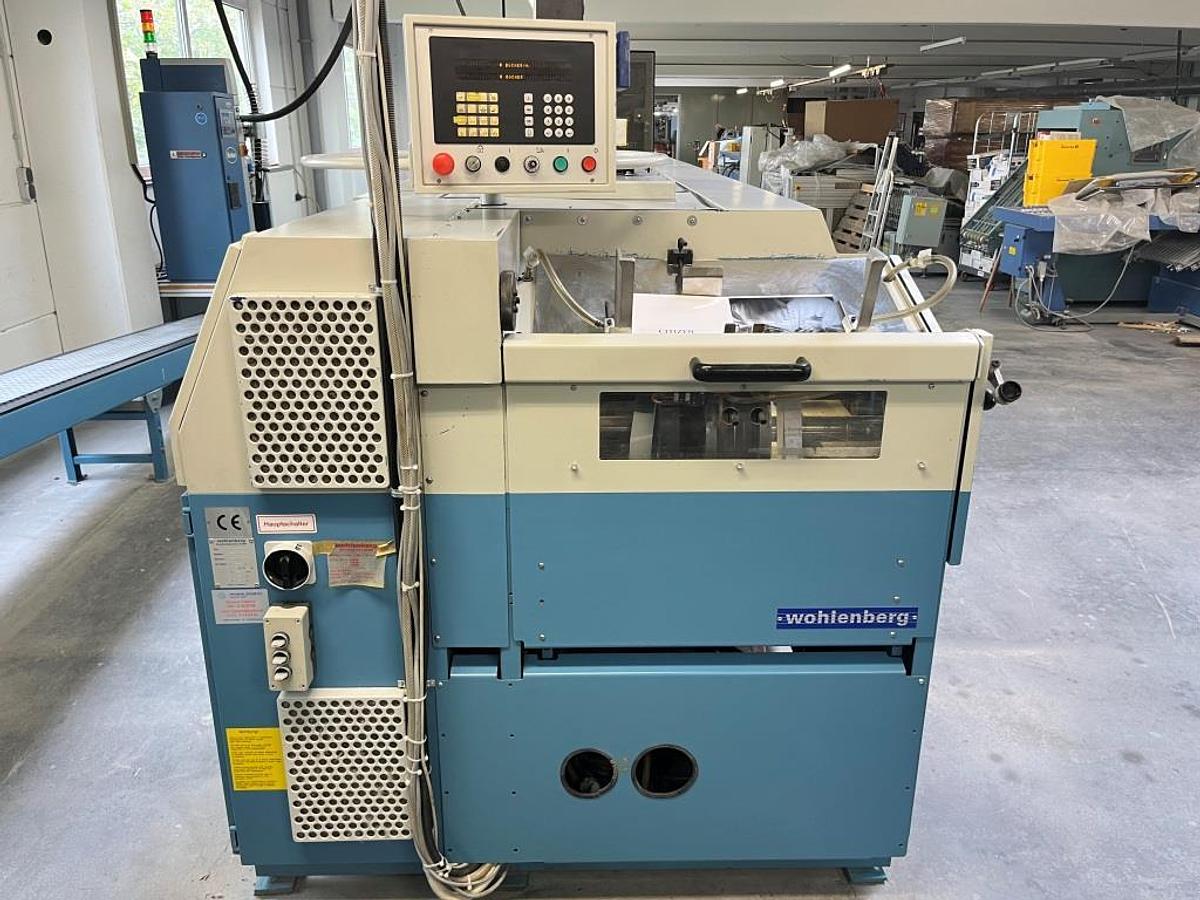

TRIM-TEC 56i three knife trimmer

• right hand infeed with integrated counter stacker
• knife changing device
• standard cutting tables (no. 1 - 8)

Special equipment:

• 2 set of knives
